采用耐高壓技術 Use silence&high pressure resistant technology | 可動鐵芯式燃?xì)獗壤y Gas proportional valve with permanent magnet |
采用雙開關，更加安全 Use double switches to be safer | 開關閥接線方式可選 The connection way of on-off valve is optional |

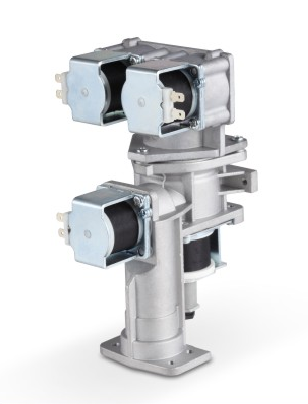

由一個主截止電磁閥、兩個分段電磁閥和一個比例調節閥組成 It is made up of one main cut-off solenoid valve, two sectionsolenoid valves sand an on-off proportional valve | 使用用途:適用于額定熱負荷不超過50kW的燃?xì)鉄崴骱腿細獠膳療崴疇t Usage: can be used in gas water heater&gas boiler whose nominal heat loading is ≤ 50KW |
使用氣體種類:液化石油氣、天然氣、人工煤氣 Gas applicable: LPG ,NG,ArtificialGas | 開閥電壓: < DC 21V (加壓10kPa空氣，冷態時測定) Valve open voltage : < DC 21V(Test with 1OkPa under cold status) | 絕緣阻抗: > 100MΩ ( DC500V ) Insulation resistance : > 100MΩ ( DC500V ) |
適用壓力: <4 kPa Pressure applicable: < 4KPA | 閉閥電壓: ≥2V Walve closing voltage :≥2V | 線圈電阻:自吸閥11OΩ±10% (20°C) 比例閥85±10Ω (20°C) Winding resistance : Solenoid valve 11OΩ±10% (20°C)Proportional valve 85±10Ω (20°C) |
允許耐壓: 10 kPa Allowable withstand voltage : 10KPA | 外部泄漏: 0. 5ml/min以下(加壓10kPa測試) External leakage: <0. 5ml/min(test with 10kPa) | 驅動信號:電磁閥:強吸時間≥500ms ,然后輸出> 80Hz占空比50%的脈沖信號，信號幅度24V比例閥: DC 0~200mA Activating signal : Solenoid valve: strong suction time ≥ 500ms.Output > 80Hz. Duty ratio 50% pulse signal. Signal amplitude of 24V proportional valve: DC 0-200mA |
環境溫度:-15°C~65°C (無結露) Ambient temperature: -15°C~65°C No condensation | 內部泄漏:主截止電磁閥0.3ml/min以下、分段電磁閥0.5ml/min(以下加壓10kPa和600Pa分別測試) Internal leakage: main solenoid valve: <0.3ml/min. Section solenoidvalve: <0 5ml/min. (test with 10kPa& 600Pa respectively) | 端子方向:任意 Direction of terminal : anyway |
額定電壓: DC 24V Nominal voltage : DC 24V |
